HardTrack Cloud Sensor

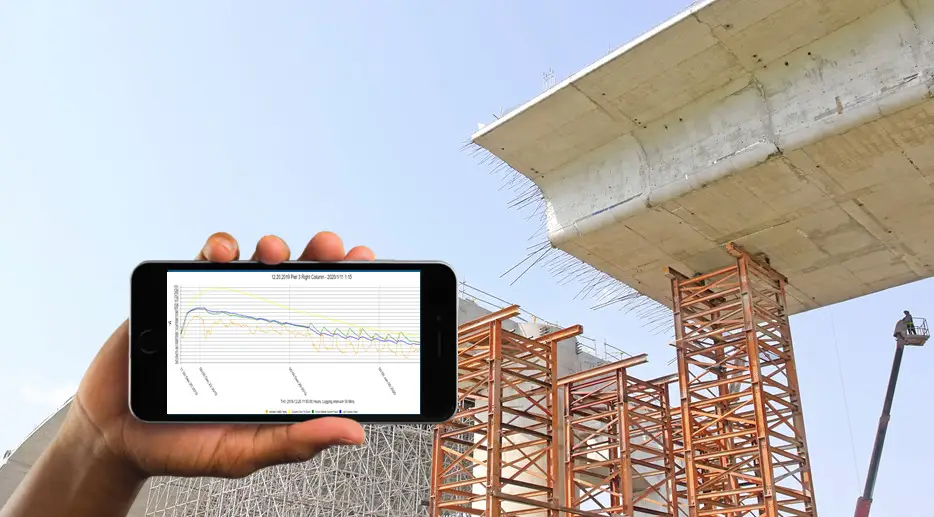

HardTrack Cloud Sensor empowers you to remotely monitor concrete temperature so your concrete pours stay within the specified Thermal Control Plan (per 207.4R-05 ACI). There is no need to visit the job site several times per day or even per week. Just activate the cloud sensor and return to your office. The precise temperature data is collected and uploaded to the cloud automatically with no extra work for you.  View the HardTrack graphical Dashboard and realtime project summary on your iPhone, Andriod device, tablet or laptop.  Receive realtime configurable alerts regarding your thermal control plan.  Easy to use.  Cellular data plan included with purchase.

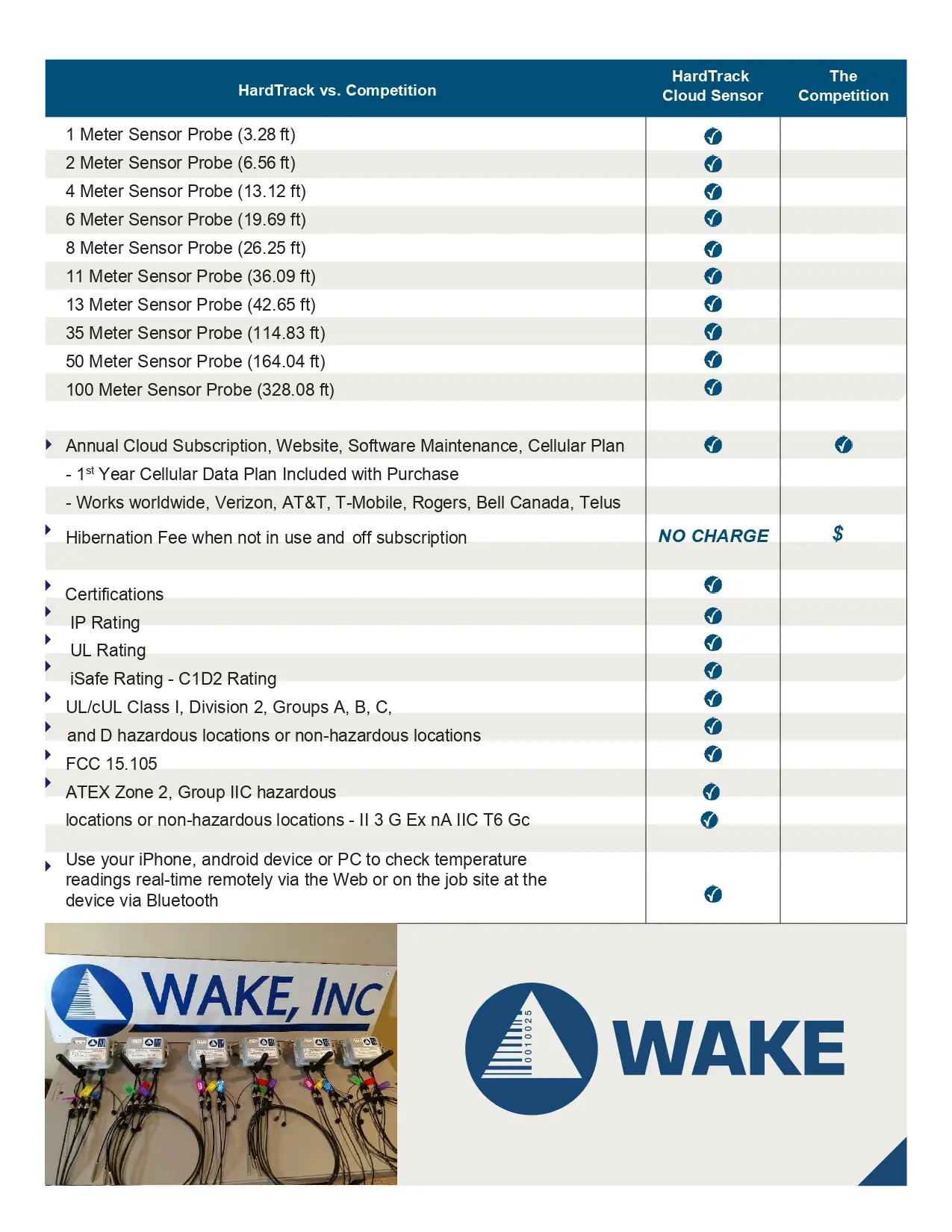

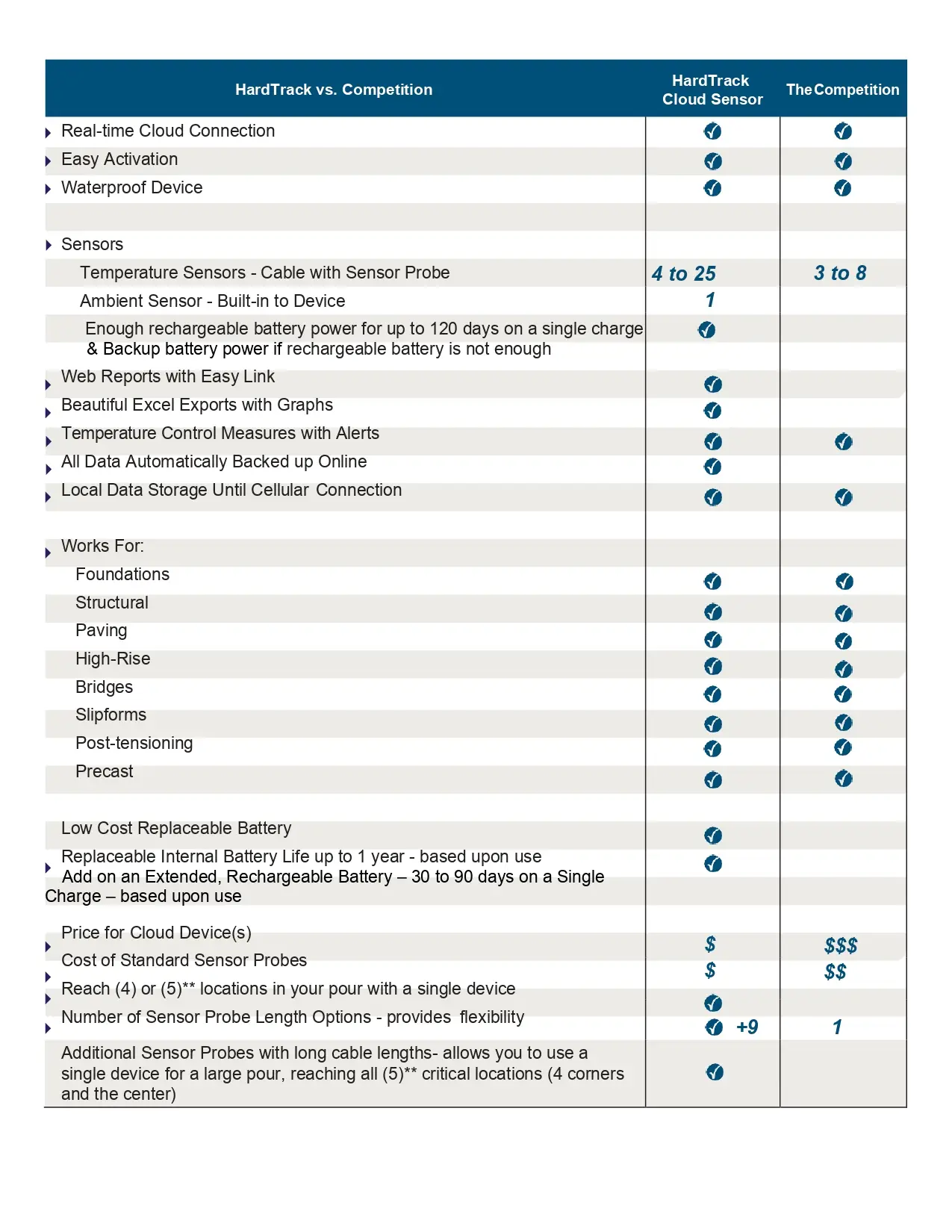

HardTrack Competitive Grid

Most noteworthy, you will be amazed at how simple concrete temperature monitoring has become using HardTrack Cloud Sensors!

• Bury the probe.
• Cover it with concrete.
• The cloud sensor collects the temperature data and uploads it to the cloud.
• View the data as frequently as you wish.
• Perhaps most importantly, you can set up Alerts that will notify you if the pour is getting too hot or too cold or if any sensor has moved outside of your thermal control plan parameters.
• Cloud sensor comes with a replaceable battery that can last up to 3 years depending upon use.

HardTrack Cloud Gateway (HTC Gateway) comes with:
– built-in ambient temperature sensor
– allows the deployment of wireless temperature sensors at distances of up to 300 meters (1,000 ft.) from the device.

• larger job site can add a repeater to gain an additional 300 meters (1,000 ft.)

HardTrack Cloud Sensor comes with:
– (1) built-in ambient temperature sensor
– (4) ports that allow you to deploy temperature sensor probes at distances of up to 100 meters (328.08 ft.) from the device.

HardTrack Cloud Sensor II comes with:
– (1) built-in ambient temperature sensor
– (4) to (25) ports in a single device that allow you to deploy temperature sensor probes at distances of up to 100 meters (328.08 ft.) from the device.

– enough rechargeable battery power to monitor the concrete pour for up to 120 days on a single charge

– backup battery power to keep the temperature logging going, if the rechargeable battery run out

Another feature is the safe collection of temperature logs remotely while you stay at home or at the office, which lowers your costs by saving time and money.

Furthermore, you will be able to monitor many pours using a single cloud sensor device.

Armor Sheath is available for temperature sensor probes when your specifications require armored sheath on your concrete temperature sensor cables.

Want to take the next step to save time and money?

HardTrack will automate the process of determining Concrete Maturity according to ASTM C1074 without the need to visit the job site several times per day.

Fifty years ago, engineers discovered the many advantages Concrete Maturity has over the destructive process of measuring the strength of the concrete. However, because there were so many problems inherent in the capture of in-situ temperatures using sensors and wires, Concrete Maturity has been slow in being accepted.

Compared to the destructive method where you break the cylinders or beams,
concrete maturity is:

• Easier
• Safer
• Faster
• More Reliable
• More Accurate
• Cost Effective
