HardTrack Cloud Gateway
Drop-in on-site gateway that pulls in every nearby sensor and forwards data to the HardTrack cloud — even where Wi-Fi can't reach.
Assembled in USAPortable, battery-powered gateway for reusable wireless loggers.
The HTC Gateway is a battery-powered HardTrack Cloud Gateway that monitors your concrete placements using reusable wireless temperature sensor loggers. It communicates simultaneously with the wireless sensors on site and the HardTrack Cloud over cellular — feeding the online real-time dashboard and your smartphone. The portable kit includes rechargeable battery power, a solar charger, and A/C power.
- 1,000 ft wireless radius, up to 2,000 sensors.One gateway reads wireless loggers up to 300 m line-of-sight; add a repeater for another 1,000 ft on larger sites.

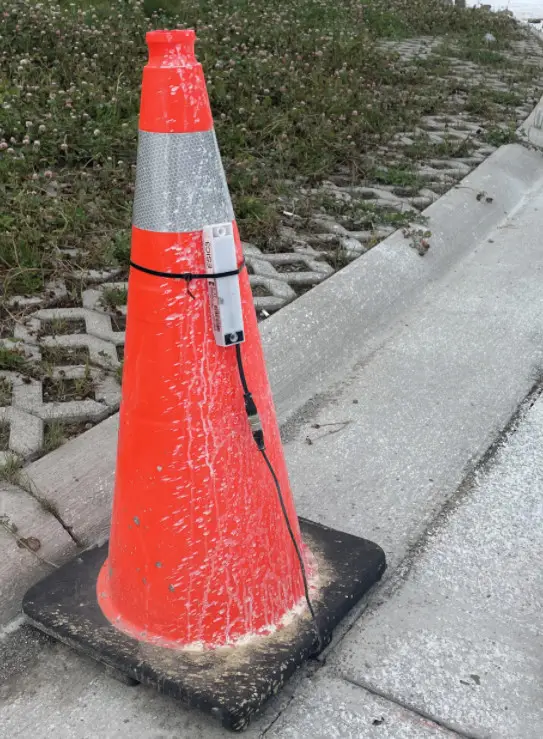

- Sacrifice only the probe — save 80% per sensor.Leave the wireless logger outside the concrete and embed just the temperature probe. Loggers are reused for 5+ years.
- Gateways team up automatically.Deploy several on one project — HardTrack elects a primary and the rest act as repeaters (sold at a discount).
- GPS location, ambient sensor, spec-driven reports.Onboard ambient temperature on every placement, and an extensive library of monitoring specifications for project-ready Microsoft Excel reports.
Every HardTrack Cloud Gateway is designed and assembled in the United States — backed by domestic quality control and support.
Engineered for unattended duty.
| Power | Rechargeable battery, solar charger, and A/C power (all included in portable kit) |
|---|---|
| Uplink | Cellular connection to the HardTrack Cloud |
| Wireless range | Up to 1,000 ft / 300 m radius line-of-sight; +1,000 ft per repeater |
| Sensor capacity | Up to 2,000 wireless sensors per gateway |
| Multi-gateway sites | HardTrack elects a primary gateway; additional units serve as repeaters |
| Logger battery life | 5+ years, reusable across projects |
| Embedded-logger option | Fully embed logger + internal sensor (nothing protruding); read range 40 ft / 12 m |
| Probe-only option | Embed only the sensor probe — 80% cost saving per sensor; full 1,000 ft read range |
| Location & ambient | GPS location reporting; onboard ambient temperature sensor |
| Reporting | Real-time online dashboard; configurable specification library for Excel reports |
| Software | Same familiar HardTrack app and Dashboard shared by all HardTrack hardware |
Need coverage for a large site?
We'll lay out the gateway plan for your project — sensors per gateway, mounting points, power & uplink — and quote it.
