Overview

Wireless temperature collection, right at the placement.

HardTrack Mobile with Industrial Handheld receives in-situ concrete temperatures wirelessly — embed the wireless sensor and read the data right through the concrete, or connect sacrificial sensor probes. Bury the wireless logger or just the probe, cover it with concrete, and retrieve the data as often as you wish. Nothing to hook up, no more broken wires, and loggers last 5+ years. Ideal for concrete paving projects and deploying to technicians — and the perfect solution for locations with no cellular or Wi-Fi coverage.

  • Works with no cellular or Wi-Fi coverage.The handheld communicates directly with the wireless sensors — no cellular or Wi-Fi needed to collect your data at the placement. The perfect solution for remote sites where connected devices can't reach the internet.
  • Read right through the concrete.Wireless sensors with built-in temperature loggers — no wires to break, no limit to the number of wireless sensors.
  • Easy upload to Windows PC & the Cloud.Access the powerful HardTrack Desktop solution and share results with associates via a simple secure email link.
  • Microsoft Excel exports with color graphs.Save hours of report creation, and configure your own HardTrack web reports with graphs.
  • Cut cylinder samples by 70%+.Concrete maturity per ASTM C1074 is easier, safer, faster, and more reliable than breaking cylinders — and Armor Sheath is available when specs require armored probe cables.
Made in Canada

The HardTrack Mobile Handheld is manufactured in Canada — designed and built to rugged North American quality standards.

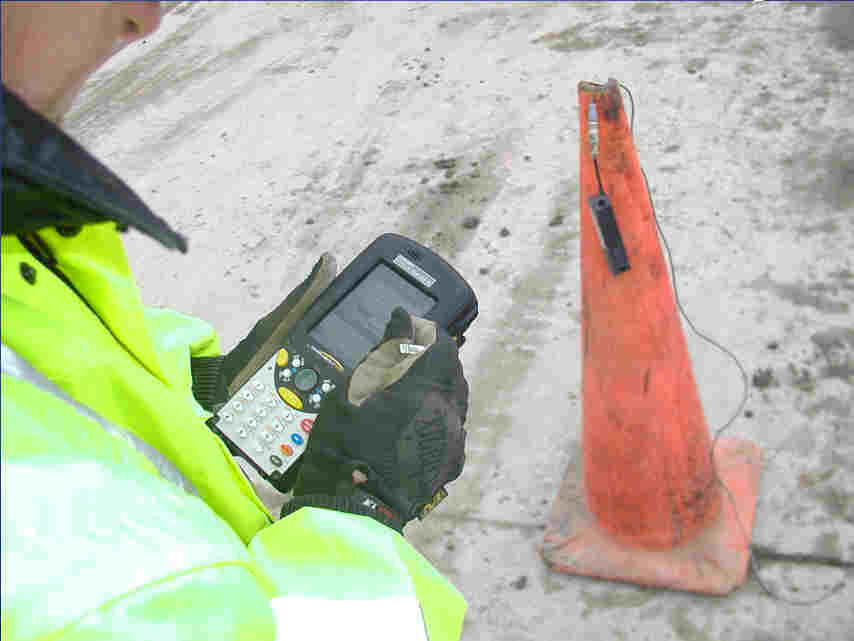

HardTrack Mobile kit with industrial handheld reader Wireless sensor on a paving project, hung over a cone to stay clear of standing water
Specifications

Built for the field.

TechnologyWireless sensors, each with a built-in temperature logger
DeploymentEmbed the full sensor (read through concrete) or connect sacrificial sensor probes
Logger battery life5+ years
Sensor countNo limit to the number of wireless sensors
Data uploadWindows PC and HardTrack Cloud; collect logs safely at the project site
ReportingHardTrack Desktop; Excel export with color graphs; configurable web reports; secure email sharing
StandardsASTM C1074 maturity; thermal control plan monitoring per ACI 207.4R
OptionsArmor Sheath for probe cables when specifications require it
SoftwareSame familiar HardTrack app and Dashboard shared by all HardTrack hardware

Outfit your QA team.

We'll quote handhelds, accessories, and case packs sized for your crew.
